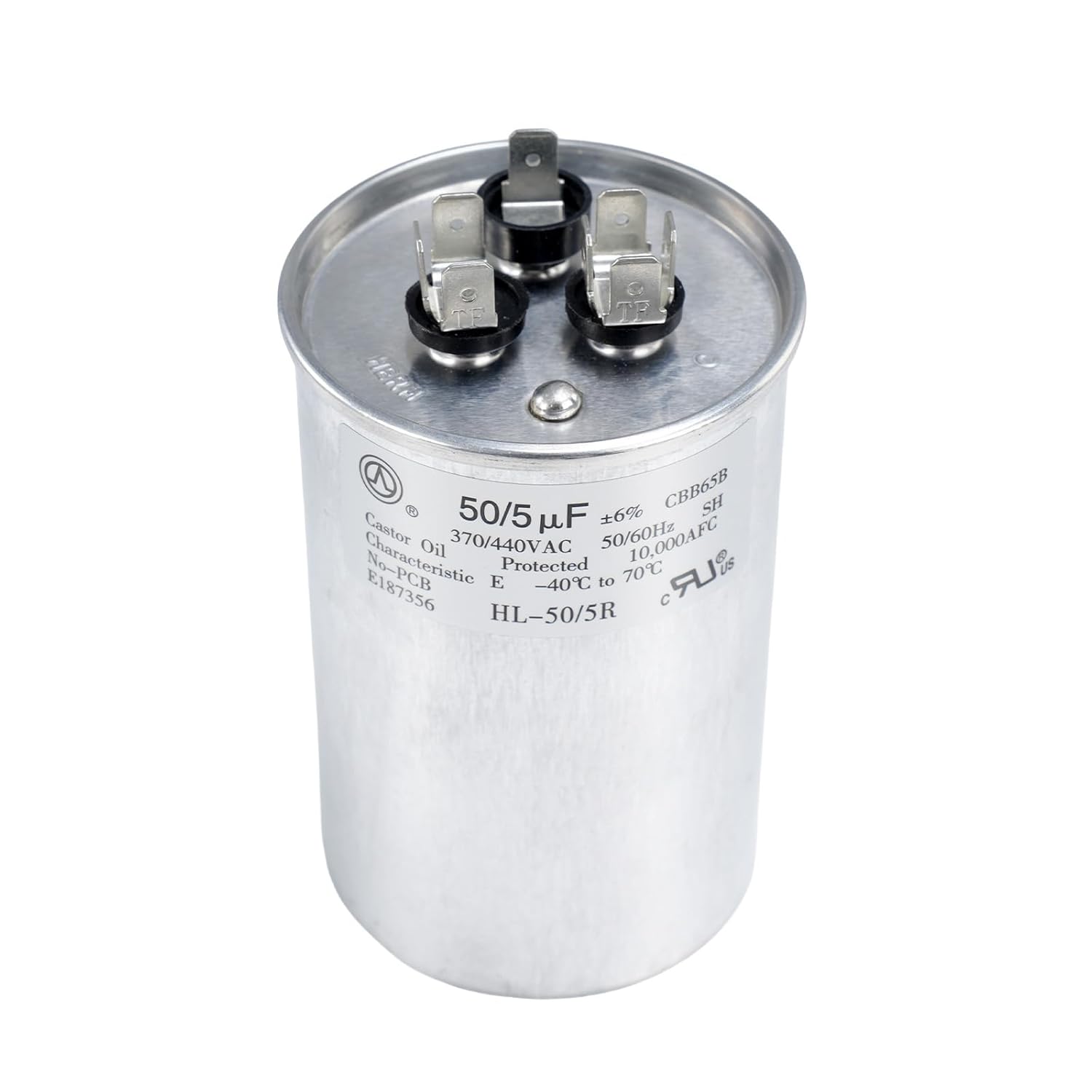

AC Capacitor 50+5 uF 50/5 MFD ±6% 370V/440VAC CBB65 Dual Run Circular Start Capacitor for Heat Pump Air Conditioner, for AC Motor Run or Fan Start

Share on

$39.99 ~~$79.99~~

Shipping calculated at checkout.

One Year Warranty, Better Quality BBQ Parts for Longer Last

Payment methods:

People who bought this product also bought

AC Capacitor 50/5 uF or 50+5 MFD 440 Volt AC Capacitor. Replaces BOTH 370 VAC & 440 VAC capacitors
Built to the TOUGHEST USA standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001
Capacitor dimension: Diameter(64 mm/2.52 inch) Height(100 mm/3.93 inch)
Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ ，Safety rated: 10,000 AFC
50/5 uF Capacitor Replacement for 97F9850 , 97F9970 , 97F9970BZ3 , TRCFD505 , RC0120 , 12790 , RC0121, 1094993 , 38514D018 , P2915053R , HC98CA050 , P291-5053RS , 024-25338-000 , 43-25133-25 , P291-5053R , HC98JA051 , 43-23204-15 , 432320415 , 05706036 , D6789043 , B94577400 , B945774-00 , CARG32458 , TT-CAP-50/5/440R , 27L601 , TP-CAP-50/5/440R , HCKS500D050R440Z , B9457-7400.
This is a quality aftermarket Parts
