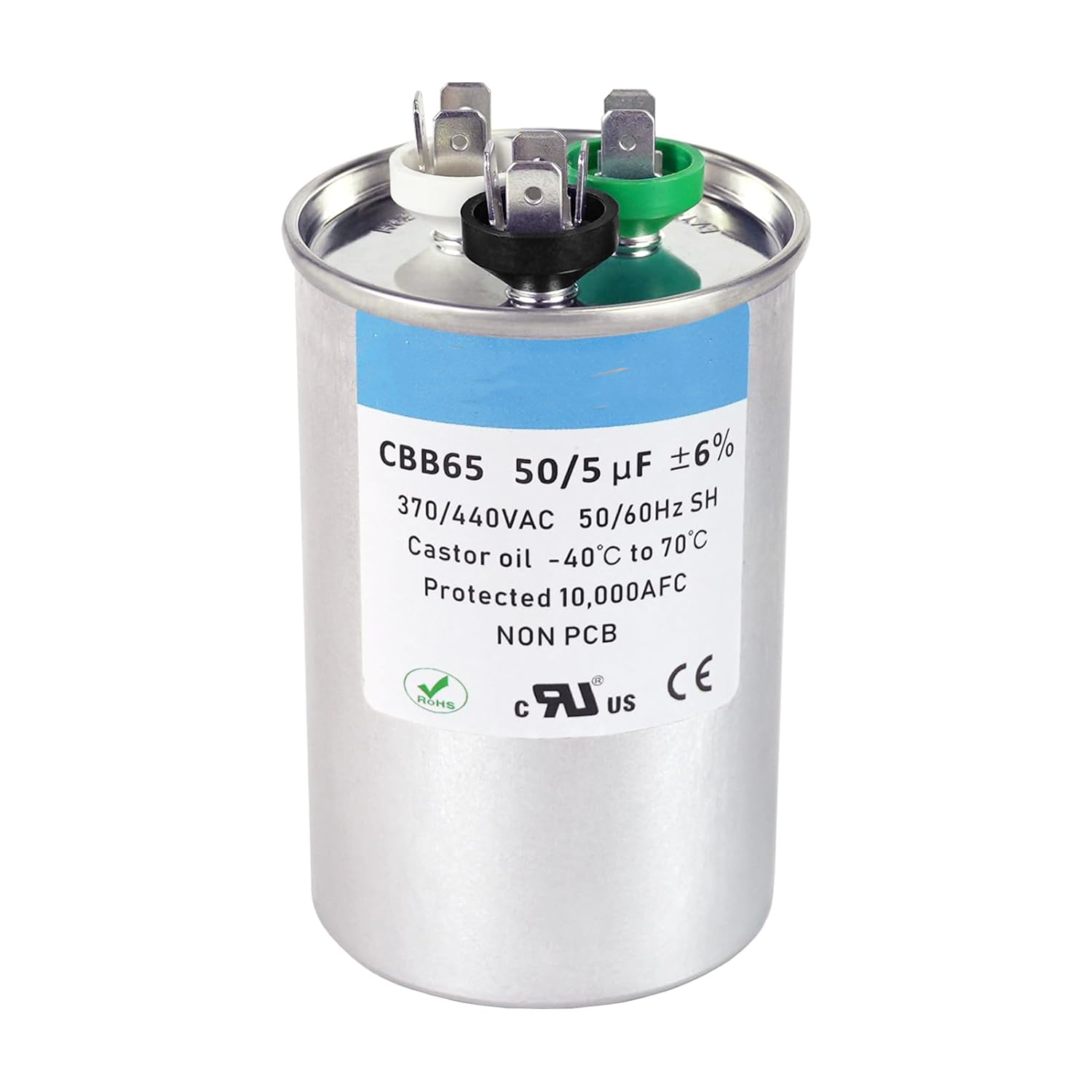

50+5 uF 50/5 MFD 370 or 440 VAC CBB65 Dual Run Capacitor for Air Conditioner, Motor Run, Heat Pump, Condenser Straight Cool, HVAC

Share on

$39.99 ~~$69.99~~

Shipping calculated at checkout.

One Year Warranty, Better Quality BBQ Parts for Longer Last

Payment methods:

People who bought this product also bought

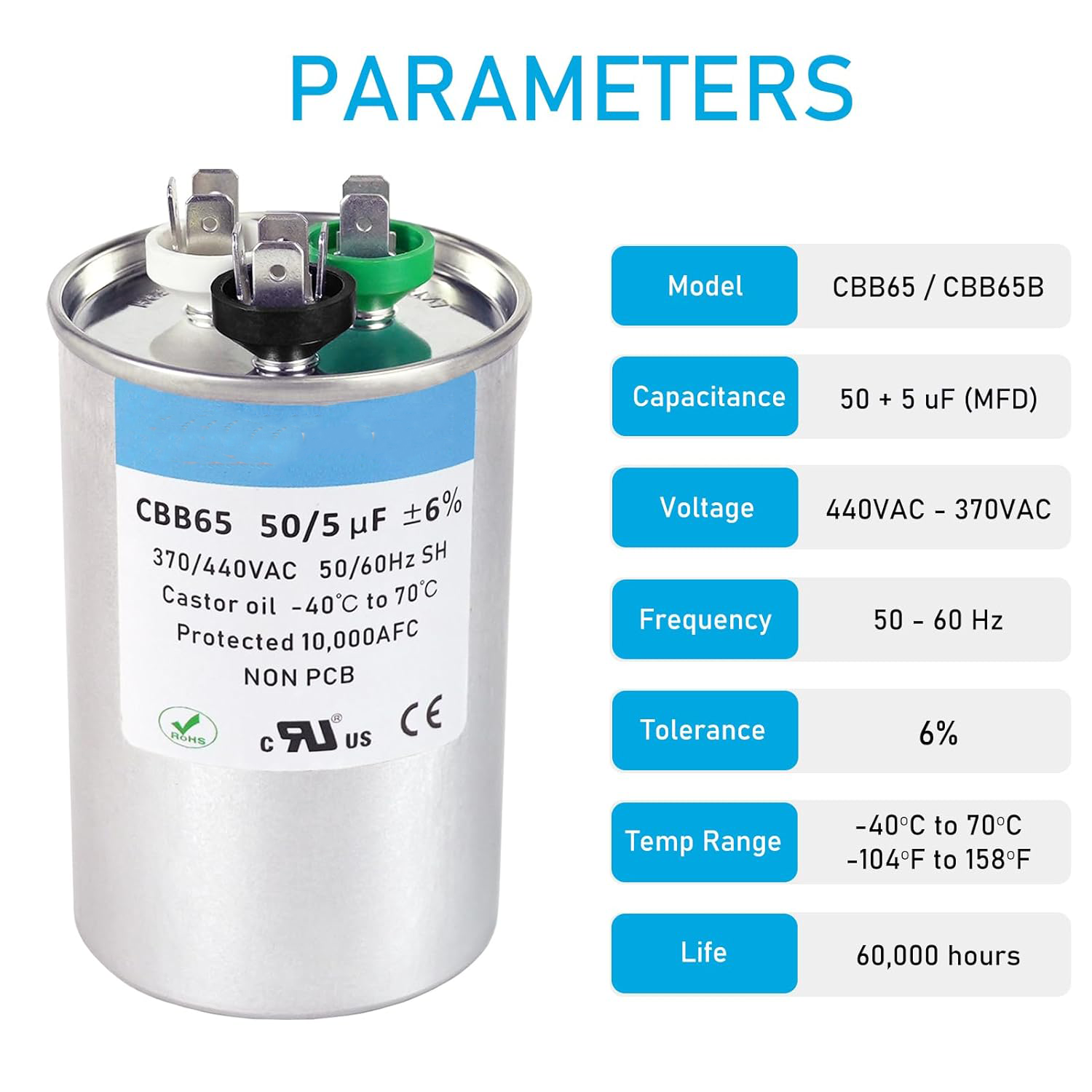

Dual Run Capacitor: 50+5uF or 50/5 Microfarad, 6%, 370/440Vac, CBB65 or CBB65B Dual Motor Run Capacitor, circular start capacitor
50/5 uF 50+5 MFD 370VAC or 440VAC Dual Run Start Round Capacitor CBB65 CBB65B AC Unit Fan Motor Start, Heat Pump, Air Conditioner, Condenser Straight
Safety: Temperature range -40℃ to +70℃/-104℉ to +158℉, Fault current protection up to 10,000 A, UL recognized, Self healing, Explosion-proof

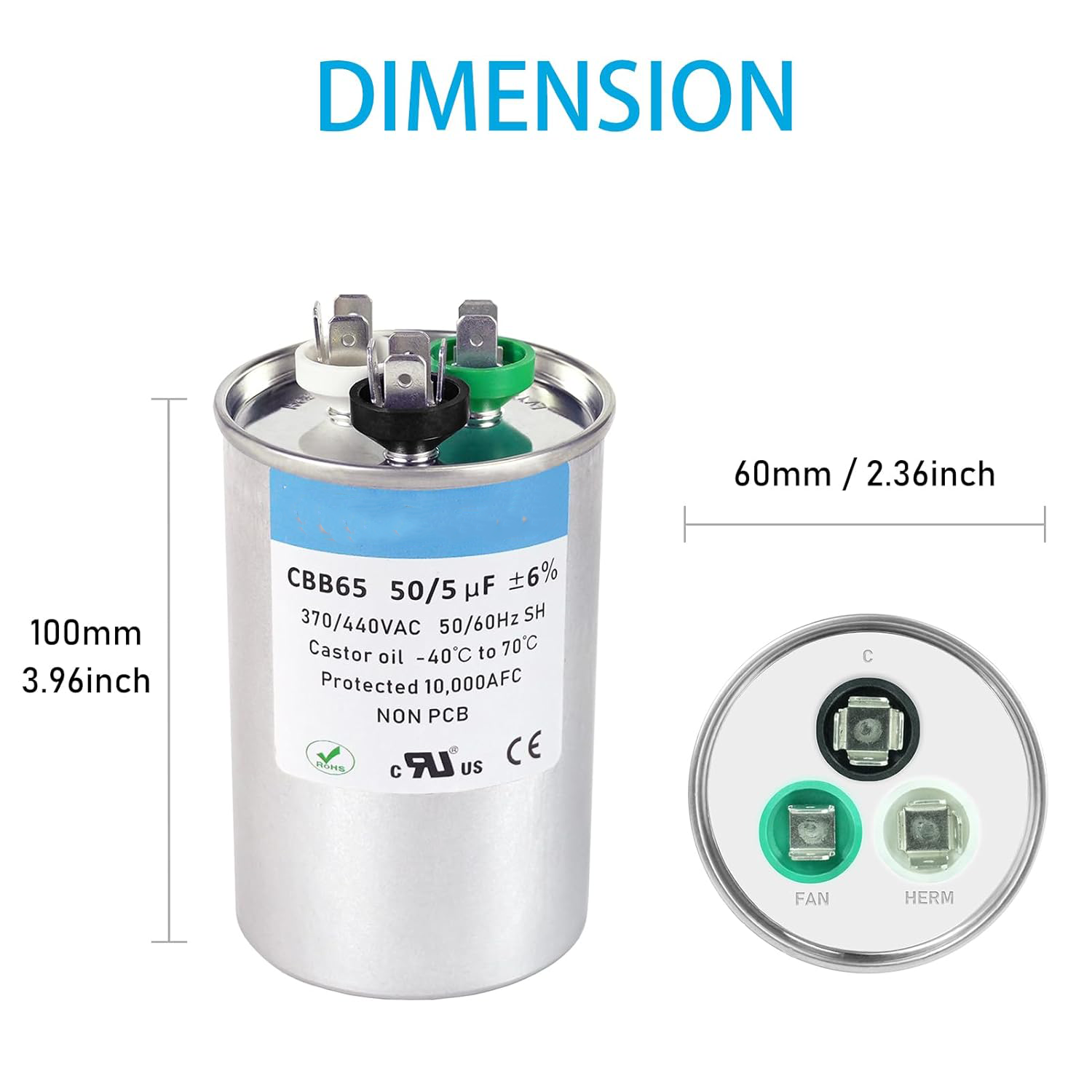

Dimension: 60mm/2.36 inch diameter, 100mm/3.96 inch height. Small size makes it easy to install anywhere
Directly replacing. There are 3 terminals at the top labelled 'HERM', 'FAN' and 'C'. Connect 'HERM' to compressor motor, 'FAN' to fan motor, 'C' to common line
Replacement for 97F9850 , 97F9970 , 97F9970BZ3, RC0120, RC0121, 12790, P291-5053R, C4505R, C3DR505, PRCFD505A, PRCD505, TRCFD505, TRCD505, CD50+5X370R, CAP-50/5/440R, CAP-50/5/440, MRRC370V5/50, MRRC440V5/50, SFS37T50-5K384E-F, SFT44T50-5K291E-F, SFD37T50-5K391E-F, SFD44T50-5K475E-F, HCKS500D050R440Z and others
Bringing HVAC Systems Back to Life: Try replacing the AC capacitor in the following cases: Fan does not spin / Abnormal sound / Air conditioner won't start /Air conditioner stops cooling / Intermittent cooling cycle
This is afteramrket parts
