Generator Controller Module with LCD Display and Control Panel for Manual Start and Stop

Share on

$189.99 ~~$329.99~~

Shipping calculated at checkout.

One Year Warranty, Better Quality BBQ Parts for Longer Last

Payment methods:

People who bought this product also bought

ACCURATE DISPLAY OF TIME: This controller accurately displays the time and recording time.
PRESET FUNCTION: The preset function allows the controller to preset multiple start and stop cycles for ease of use.
MAINTENANCE REMINDER: This controller can preset the maintenance cycle reminder function.
REMOTE MONITORING: The controller can be remotely monitored via the network with high (using DSE855).

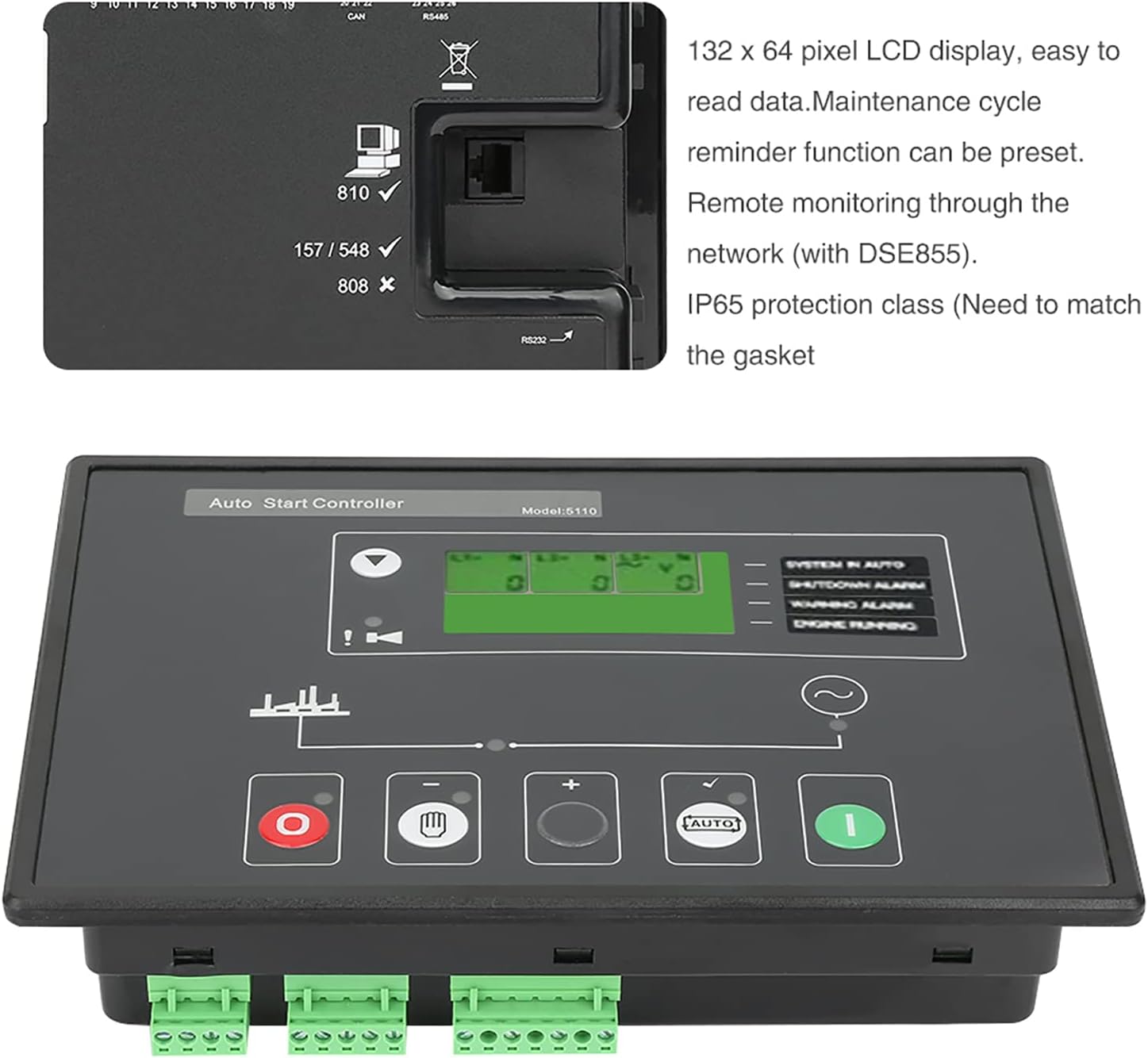

LCD DISPLAY : The controller screen is a 132 x 64 pixel LCD display for easy reading of data.
Specification:
Material: Plastic
Weight: 837g/29.5oz
Model: DSE5110
Power supply: DC 8~35V continuous
Start relay output:16AmpDC system DC voltage
Fuel relay output: 16Amp DC system DC voltage
Auxiliary relay output: 5Amp DC system DC voltage
Operating temperature range: -30 ~ +70C
Charging failure/excitation range: 0V~35V
Maximum operating current: 425(12V); 215MA (24V)
Starting voltage drop: when the voltage provided before starting is not less than 10V and the voltage recovery voltage reaches 5V, the control system can be ensured to maintain normal after 50ms of 0V voltage. There is no need to add a built-in battery.
